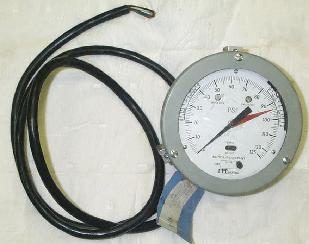

A 4 1/2" differential
pressure switch that has successfully met the conditions required by the specifications of MIL-S-901C Shock Grade A and MIL-STD-167 Vibration.
Scale can be graduated uniformly for measurement of differential pressure or liquid level, or square root for measuring flow rates.
Typically used by the US Navy. We repair these gauges as we do all ITT BARTON
instruments. So if yours is broken, please contact us for a free estimate of
repair.
Housings and Safe Working Pressures:
Forged brass, SWP 500 PSI.
(34.5) bar
Brass, SWP 1000 PSI.
(68.9 bar)
CR Steel , SWP's 1500, 3000, & 6000 PSI.
(103.4 , 206.9, &413.8 bar)
316 Stainless Steel, SWP's 500 ,1500, 3000, 6000 PSI.
(34.5, 104, 207, 414 bar)
Cast Aluminum, SWP 400 PSI.
(27.6 bar)
Alloy Steel , SWP 10000 PSI.
(690 bar)
Bellows Material:
316 Stainless Steel, Beryllium Copper, or Inconel
DP Ranges:
0-30"w.c. to 0-1000 PSID
(0-762 mm to 0-69 bar)
Accuracy (DP Range)
Repeatability: .25%
Temperature Limits:
-40 F (-40 C) to + 180 F (+80 C)
|
|
